Description

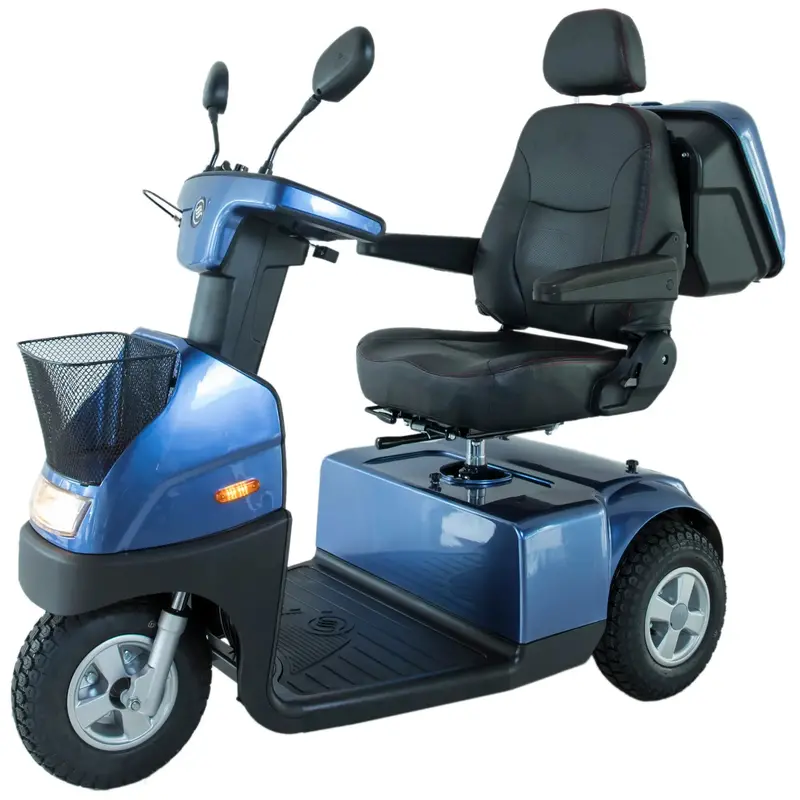

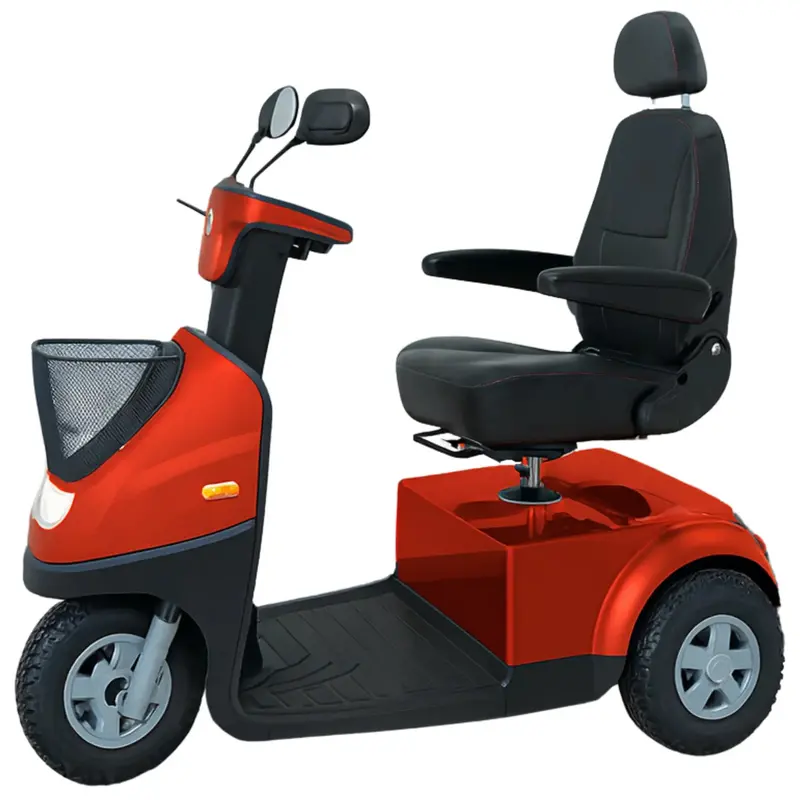

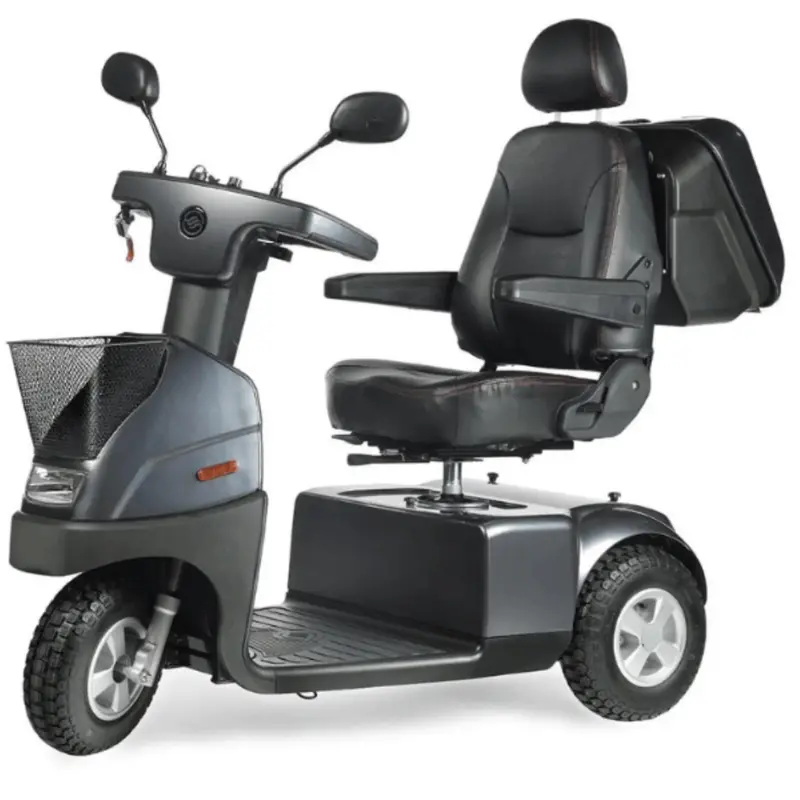

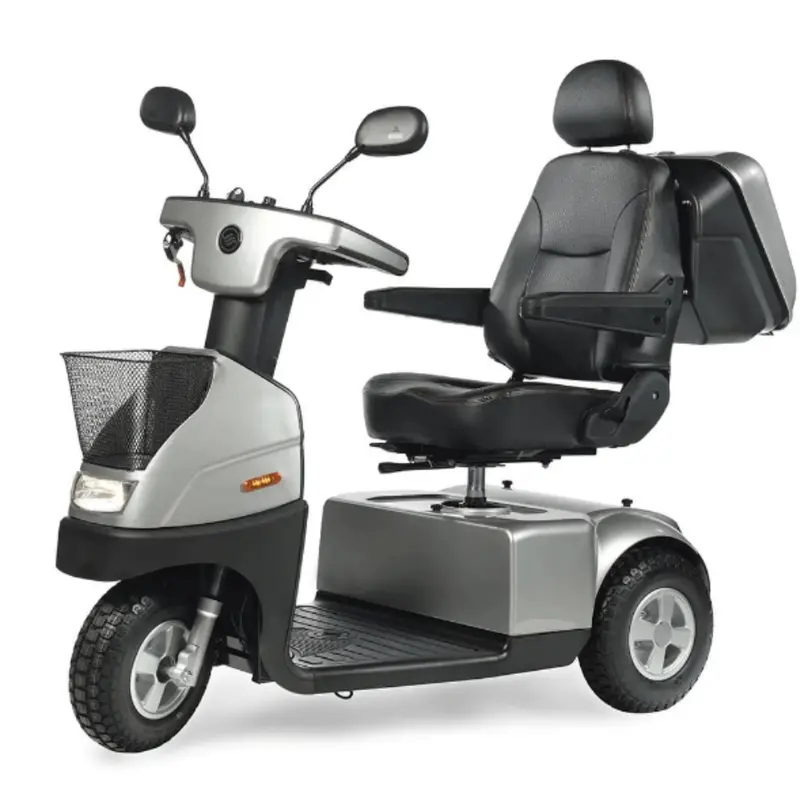

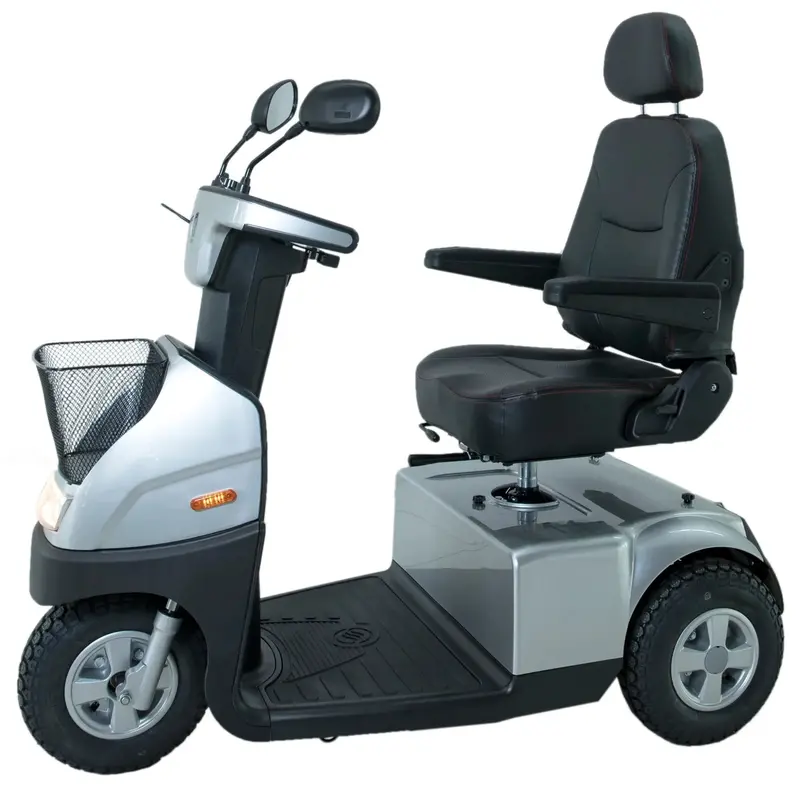

C3 Breeze – 3-Wheel Electric Mobility Scooter with Extended-Range Battery Support
The Afiscooter C3 Breeze Extended Range is a mid-size, 3-wheel mobility scooter designed to support on your everyday movement, a higher battery capacity for longer travel distances. It is suited for you if you want efficient turning in tighter spaces while extending how far you can travel between charges.
Its 3-wheel configuration provides a 50-inch turning radius, allowing easier navigation through hallways, doorways, and walkways. This design also supports stable travel on paved areas, unpaved paths, and moderate surface changes, helping you move between indoor locations and outdoor routes with fewer adjustments.
Rear-Wheel Drive with Extended Battery Capacity
The Afiscooter C3 Breeze Extended Range gives you enough power to travel longer distances without worrying about frequent charging. With a top speed of up to 9.3 mph and a range of up to 31 miles per charge, you can complete longer daily trips.
this mobility scooter supports a maximum climbing angle of 9° (16%), making it suitable for standard ramps and typical inclines when used within operating specifications.
A Seat Made for Easier Transitions
The scooter includes an 18-inch wide seat that swivels 45° or 90°, making side entry and exit more direct. Folding armrests can be moved out of the way during transfers. Once seated, the fixed seat position remains stable during travel, reducing the need for repositioning.
One-Handed Control Layout
The scooter features a delta tiller with a center-mounted dashboard that groups the main driving controls in one location. It comes standard with a right-hand throttle configuration.
The centralized layout allows controls to remain accessible during operation without requiring repositioning while driving.
Afiscooter C3 Demo Video
.responsive-video-section .video-wrapper { width: 100%; max-width: 800px; aspect-ratio: 16 / 9; margin: 20px auto; } .responsive-video-section iframe { width: 100%; height: 100%; border: none; }
Afiscooter C3 Optional Features Overview
.container { display: flex; flex-wrap: wrap; justify-content: center; gap: 16px; padding: 16px; } .item { flex: 1 1 calc(33.33% – 32px); text-align: center; max-width: 300px; } .container img { width: 100%; height: auto; border-radius: 8px; } .item p { margin-top: 8px; } .item p { color: #000; margin-top: 4px; } @media (max-width: 768px) { .item { flex: 1 1 calc(50% – 32px); } } @media (max-width: 480px) { .item { flex: 1 1 100%; } }
Large Rear Basket
A spacious and durable rear basket for carrying your essentials conveniently.
Safety Belt
Ensure a safe and secure ride with this reliable safety belt.
Rear Lock Box
Keep your valuables safe and locked with this sturdy rear box.
.features-dropdown { border: 1px solid #ccc; border-radius: 4px; padding: 5px 16px; margin: 5px 0; background: #fff; } .features-dropdown summary { font-weight: 600; cursor: pointer; } .features-dropdown ul { padding-left: 20px; margin-top: 12px; } .features-dropdown li { margin-bottom: 10px; line-height: 1.5; font-weight: 500; }
Key Features
- Sturdy Frame Design: Built with a solid structure to support stable operation during use.
- Delta Tiller with LCD Display: Features a delta-style tiller with left and right finger-touch controls and an LCD screen that displays scooter information.
- Front and Rear Suspension: Includes suspension at both the front and rear to reduce the impact of uneven surfaces for indoor and outdoor use.
- Orthopedic Seat: Equipped with an adjustable orthopedic captain’s seat that supports seated posture and allows easier entry and exit.
- Storage Compartments: Includes a lockable front compartment for small items and supports an optional rear lockable storage box.
- LED Headlight: Fitted with an LED headlight to provide illumination in low-light conditions.
- Optional Hard-Top Canopy: An optional canopy is available to provide overhead coverage from weather exposure.
.features-bordered-dropdown { border: 1px solid #ccc; border-radius: 8px; padding: 10px 14px; } .features-bordered-dropdown summary { font-weight: 500; cursor: pointer; list-style: none; } .features-bordered-dropdown summary::-webkit-details-marker { display: none; } .features-bordered-dropdown ul { padding-left: 20px; margin-top: 12px; } .features-bordered-dropdown li { margin-bottom: 8px; font-weight: 500; }
What’s In the Box?
- Afiscooter C3 Breeze scooter unit (3-wheel configuration)
- Delta tiller with LCD digital display
- Right-hand finger-touch controls (factory default)
- Orthopedic cushioned seat with backrest
- Fold-down armrests
- Swivel seat mechanism
- Front basket
- Front LED headlight
- Front and rear turn indicators
- Rear brake lights
- Rear-view mirror(s)
- Electromagnetic automatic brake system
- Manual hand brake
- Manual freewheel release lever
- USB charging port
- Two 12V sealed lead-acid batteries
- Battery cover
- On-board battery charger
- Main fuse and charge fuse
- User manual and safety documentation
.documents-dropdown { border: 1px solid #ccc; border-radius: 4px; padding: 5px 16px; margin: 5px 0; background: #fff; } .documents-dropdown summary { font-weight: 600; cursor: pointer; } .documents-dropdown p { margin: 12px 0; display: flex; align-items: center; gap: 10px; } .documents-dropdown img { float: none; }
Documents
Afiscooter C3 User Manual
Afiscooter C3 Product Information Brochure
.specs-dropdown { border: 1px solid #ccc; border-radius: 4px; padding: 5px 16px; margin: 5px 0; background: #fff; } .specs-dropdown summary { font-weight: 600; cursor: pointer; } .specs-dropdown table { width: 100%; border-collapse: collapse; margin-top: 20px; } .specs-dropdown th, .specs-dropdown td { border: 1px solid #444; padding: 10px; text-align: left; } .specs-dropdown th[colspan=”3″] { background-color: #f2f2f2; font-weight: bold; }
Specifications
| Weight | |
|---|---|
| Weight Capacity (Including Driver) | Up to 330 lbs |
| Weight (With Batteries) | 165 lbs |
| Weight (Without Batteries) | 103 lbs |
| Seat Weight | 46 lbs |
| Overall Weight(Inc.batteries,Seat | 211 lbs |
| Optional Canopy Weight | +26 lbs |
| Performance | |
| Travel Range (With Batteries) | Up to 31 mi |
| Maximum Speed | up to 9.3 mph |
| Max Climbing Angle | 9° (16%) |
| Turning Radius | 50″ |
| Dimensions | |
| Overall Length | 51″ |
| Overall Width (Standard Wheels) | 26″ |
| Overall Width (Folded) | 31″ |
| Overall Height (With Canopy) | 50″ |
| Overall Height (Without Canopy) | 65″ |
| Ground Clearance | 4″ |
| Backrest Height | 20.5″ |
| Foot Rest To Seat Distance | 10″ |
| Leg to Seat Surface Angle | 93 Degree |
| Armrest to Seat Distance | 6.3″ |
| Handlebar Diameter | 2.5″ |
| Seating | |
| Seating Width | 18.1″ |
| Seating Depth | 17.7″ |
| Seat From Floor Height | 26″ |
| Wheels & Tires | |
| Tire Type | Pneumatic (1.7 bar) |
| Front Tire Size | 4.10/3.50-6″ |
| Rear Tire Size | 4.10/3.50-6″ |
| Motor & Battery | |
| Battery Type | Sealed Lead Acid 12V 48Ah x2 |
| Battery Weight | 31 lbs (x2) 62 lbs in Total |
| Battery Dimension | 7.7″L x 6.6″W x 6.9″H |
| Power Unit | Rear wheel drive |
| Controller Type | SD 120A |
| Charger Type | 8 Amp |
| Options & Accessories | |
| Available Add-ons | Canopy, Rear Lock Box, Seat Belt, Large Basket |
.features-dropdown { border: 1px solid #ccc; border-radius: 4px; padding: 5px 16px; margin: 5px 0; background: #fff; } .features-dropdown summary { font-weight: 600; cursor: pointer; } .features-dropdown ul { padding-left: 20px; margin-top: 12px; } .features-dropdown li { margin-bottom: 10px; line-height: 1.5; font-weight: 500; }
Warranty Information
The Afiscooter C3 are covered by extensive warranty for a minimum period of one year.
