Comfygo Z-4 Ultra-Lightweight Electric Mobility Scooter With Modular Frame

Description

ComfyGO Z-4 Ultra-Light Electric Mobility Scooter

Looking for an affordable mobility scooter with lightweight convenience? Discover the Z-4 Lightweight Portable Mobility Scooter from ComfyGO! Designed with a sleek four-wheel structure, this scooter offers enhanced stability and durability, making it perfect for users of all ages. Experience effortless mobility with the Z-4, your ideal companion for easy and reliable transportation

Z-4 Ultra-Light Quick-Detach Frame

The ComfyGO Ultra-Light Electric Mobility Scooter is a sleek and compact scooter 4 wheel mobility scooter designed for easy disassembly, allowing users to break it down for convenient transport and storage effortlessly.

With its quick-detach frame, the heaviest piece weighs just 30 lbs, ensuring swift assembly or disassembly in under 30 seconds. The Z-4 boasts a maximum capacity of 330lb, providing robust support while reaching a maximum speed of 5mph.

Z-4 Ultra-Light Modular Build for Easy Transportation

This scooter’s innovative design allows it to be disassembled into five manageable components: the basket (2.5 lbs), tiller bar (8.5 lbs), super seat (17 lbs), rear frame (26 lbs), and main frame (30 lbs). Each piece is engineered to be lightweight, making it easy to store, transport, or lift into a vehicle. This modular design is ideal for users who prioritize convenience and flexibility when traveling or storing their mobility device.

User-Friendly Controls for Z-4 Ultra-Light Electric Mobility Scooter

The ComfyGO Z-4 features an intuitive control panel that simplifies navigation and adjustment for the user. The dashboard includes clearly labeled controls for speed adjustment, a battery level indicator, and essential functions like lighting and a horn. The ergonomic design of the handlebars ensures a comfortable grip, while the control layout enhances accessibility, making it suitable for users of all ages and abilities.

---

Z-4 Ultra-Light Electric Mobility Scooter Essential Features

---

All-Terrain Performance

The Z-4 mobility scooter offers simple and intuitive controls, designed for comfortable use with either the left or right hand. Powered by a 250W bridge motor, it delivers exceptional performance across various terrains. The intelligent electromagnetic braking system ensures reliable stopping capabilities, providing a safe and smooth driving experience. Enhanced visibility is guaranteed with the inclusion of front upper and lower dual headlights.

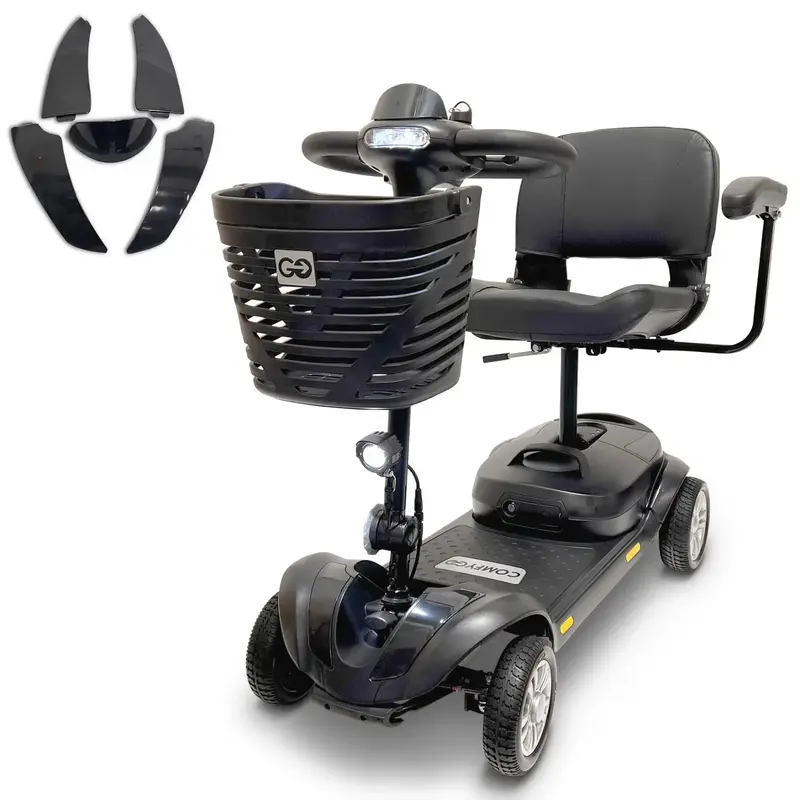

Customize Your Scooter

The Z-4 mobility scooter is designed for ultimate portability, easily detaching into six pieces to fit even the smallest car trunks. With two interchangeable color accents to choose from, you can personalize your scooter and change its appearance to suit your style. The Z-4 also features an adjustable-width super seat, specifically developed for optimal comfort. Experience the perfect combination of convenience, customization, and comfort with the Z-4 mobility scooter.

Airline & Cruise Approved

The Z-4 mobility scooter offers two lightweight battery options to suit your needs: the 12AH and 30AH lithium-ion batteries. The 12AH battery is airline and cruise approved, providing a range of up to 13 miles, while the 30AH battery offers an extended range of up to 30 miles but is not airline approved. Designed for user convenience, both batteries can be charged while installed in the scooter or independently, ensuring uninterrupted mobility and ease of use.

.z4-features { display: grid; grid-template-columns: repeat(auto-fit, minmax(280px, 1fr)); gap: 20px; margin-top: 20px;}.feature-card { text-align: center; padding: 10px;}.feature-card img { width: 100%; height: auto; border-radius: 10px; margin-bottom: 12px;}.feature-card h5 { font-size: 18px; margin-bottom: 8px;}.feature-card p { text-align: justify; font-size: 15px; line-height: 1.6;}

---

Documents

---

User manual

table { width: 100%; border-collapse: collapse; margin-top: 20px; } th, td { border: 1px solid #ddd; padding: 8px; } th { background-color: #f4f4f4; text-align: left; } tr:nth-child(even) { background-color: #f9f9f9; } tr:hover { background-color: #f1f1f1; }

---

Specifications

---

Specifications	Details
Weight & Capacity
Max Loading Weight	330 lbs
Net Weight with Battery	98 lbs
Packaging Weight	100 lbs
Battery Weight	8 lbs
Performance
Range (Depends on battery)	(12AH – 13 Miles) and (30AH – 30 Miles)
Max Speed	5 mph
Climbing Angle Max Degrees	12 degrees
Turning Radius	≤ 47″
Static Stability	10°
Max Safe Slope	10°
Dimensions
Unfolded Dimensions	42″L x 20″W x 36″H
Folded Dimensions	42″L x 20″W x 20″H
Packaging Dimensions	43″L x 21″W x 23″H
Ground Clearance	2″
Obstacle Climbing	2″
Seat Area
Seat Area Width	16.5″
Seat Length	15″
Seat Height (from ground)	18.5″
Backrest Height	15.5″
Armrest Height (from cushion)	9″
Motor & Battery
Motor	2 * 250W (total 500W)
Battery Type	Lithium-ion
Battery Option	12AH and 30AH
Battery Charge	AC 100-240V, 50Hz, 1.5-5A
Charging Time	6-8 hours
Controller	DC 18.5V-30.5V 25A MAX
Additional Features
Color	Blue and Red
Airline/Cruise Approved	Yes
Degree of Protection	IPx3
Folding	Manual folding
Wheels
Front-Wheel Size	7.5″
Rear-Wheel Size	8.5″
Additional Info
Standard and Upgrades	Standard Tire – Solid Tire Optional Upgrade – Air Filled Tire and 4 Wheel Suspension

---

Warranty

---

3-year warranty for the frame
1-year warranty for motor and electronics
6 months for batteries

.faq-list { list-style-type: none; padding: 0; margin: 0; } .faq-question { cursor: pointer; padding: 12px; background-color: #f2f2f2; border: 1px solid #ddd; text-align: left; position: relative; font-weight: 500; transition: background-color 0.3s ease; } .faq-question:hover { background-color: #e9e9e9; } .faq-answer { display: none; padding: 12px; border: 1px solid #ddd; border-top: none; animation: fadeIn 0.3s ease; } .faq-question::after { content: ’02B’; /* plus sign */ font-size: 20px; position: absolute; right: 20px; top: 50%; transform: translateY(-50%); } .faq-question.active::after { content: ‘2212’; /* minus sign */ } @keyframes fadeIn { from {opacity: 0;} to {opacity: 1;} }

---

Z-4 Electric Scooter FAQ

---

1. Does my scooter arrive fully assembled?Your scooter will arrive almost fully assembled. You will need to attach a few remaining parts.
2. Can my scooter go on an airplane or cruise?Yes. The 12AH lithium-ion battery option is approved by most airlines and cruise lines. Confirm with the airline or cruise line before traveling. The 30AH is not airline or cruise approved.
3. I’ve run out of battery. Can I push my scooter?Yes. To push the Z-4, turn off the power and disengage the motor by pulling the levers into the unlocked position, enabling free-wheel mode.
4. Does the armrest raise?Yes. Both armrests can raise or flip up for easier access.
5. How do I charge the battery?You can charge the battery directly. Charging takes 6-8 hours for a fully empty battery, less for a partially charged one. Unplug the charger once fully charged.
6. Does my scooter come with a warranty?Yes. The Z-4 scooter includes a 3-year frame, 1-year motor, 1-year battery, and 1-year electronic parts warranty.
7. Can I use my scooter on dirt and grass?Yes. The Z-4 can easily handle low grass and compacted dirt surfaces.
8. Where can I find the serial number of my scooter?The serial number is located on the frame near the footrest, in the product manual, and on the shipping box.
