Forcemech Ark All-Terrain Heavy-Duty Folding Powerchair

Description

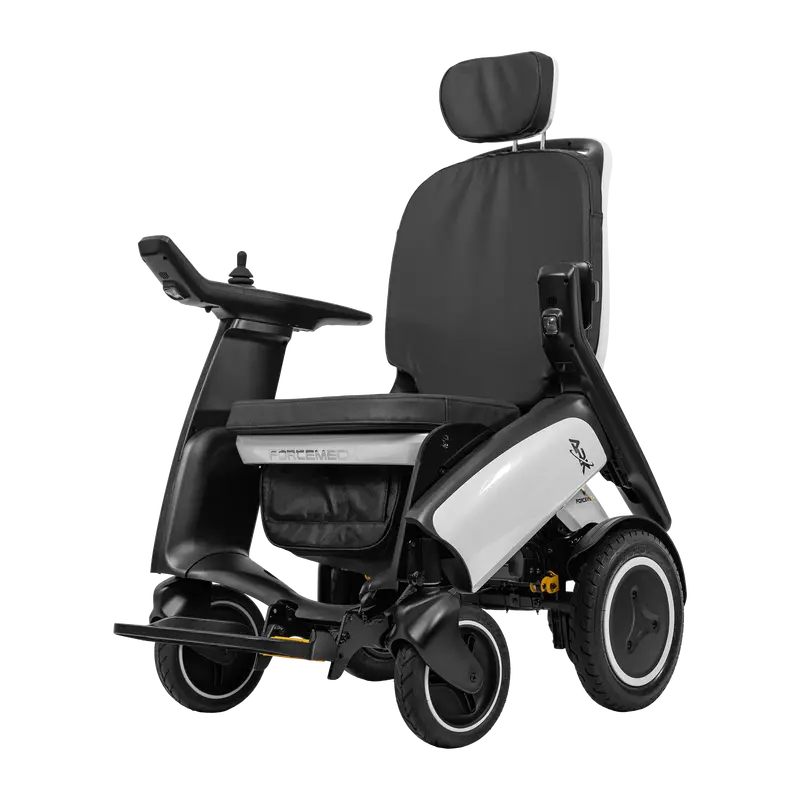

Forcemech ARK Folding Powerchair

The Forcemech ARK Folding Power Chair is a folding power chair designed with higher capacity, a reclining seat, and a more complete feature set than basic travel chairs.

It supports up to 330 lbs and uses dual 300W motors to handle daily surfaces like sidewalks, ramps, and uneven ground. The chair folds for transport while maintaining a solid frame and full-size seating.

The ARK includes a reclining backrest, flip-up armrests, and manual push mode, features typically found on larger, non-folding power chairs.

This makes it a good option for users who want portability without giving up seat function, power output, or support.

Overview

• Supports up to 330 lbs

• Reclining seat for comfort

• Folds quickly for transport

• Up to 15-mile range

• Dual 300W motors

• Electric or manual push mode

• Important Travel Notice: This wheelchair uses a high-capacity lithium battery wh,ich may exceed airline limits. It is not advertised as FAA-approved or cruise-compliant, and customers must confirm acceptance directly with their airline or cruise provider before travelling.

Forcemech ARK Reclining Power Wheelchair

The ARK has a reclining seat, so you can lean back and rest when your back or legs need a break. Soft, supportive cushions help reduce pressure during longer rides.
Flip-up armrests make getting in and out easier.

ARK Travel Folding Power Wheelchair

The ARK Folding Power Wheelchair takes the hassle out of travel and daily use with its quick-fold design. It opens and closes in seconds, and the frame comes apart into two lighter pieces.



Dual-Motor Drive System

The ARK uses two 300W brushless motors to move across sidewalks, ramps, and uneven ground.

Top speed is up to 4 mph, with a range of up to 15 miles per charge.



Manual Push Mode for Caregiver Assistance

The ARK includes a manual push mode that disengages the motors, allowing the chair to roll freely when assistance is needed.

Joystick Controls & Built-In Charging

The Forcemech ARK is operated using a right-hand joystick controller with an LED display that shows speed and battery level.

The chair includes dual USB ports for charging personal devices, along with a phone holder and Bluetooth speaker for calls or audio while riding.

All-directional joystick control allows precise steering in indoor and outdoor spaces.

Forcemech ARK Included Features

• Brushless dual-motor drive system
• Reclining seat back
• Manual push / freewheel mode
• LED lighting (front and rear)
• Joystick controller with LED display
• USB charging ports
• Bluetooth audio

---

Forcemech ARK Documents

---

Forcemech ARK Brochure

---

Forcemech ARK Specifications

---

table { width: 100%; border-collapse: collapse; margin: 20px 0; } th, td { border: 1px solid #333; padding: 10px; text-align: left; vertical-align: middle; } th[colspan=”2″] { background: #f2f2f2; font-size: 1.1em; }

Capacity & Weight
Maximum Loading Capacity	330 lbs
Chair Weight	90 lbs
Performance
Maximum Speed	4 MPH
Slope Capacity	≤9°
Climbing Capacity	≤10°
Obstacle Clearance Height	1.5″
Turning Radius	39″
Maximum Travel Range	15 Miles
Dimensions
Overall Length	41″
Overall Width	24.5″
Overall Height	40″
Seat Width	19″
Seat Depth	18″
Seat Height	21″
Backrest Height	59″
Width of Folding Front Frame	24″
Wheels & Suspension
Wheel Type	Pneumatic Tire
Front Wheel Diameter	9″
Rear Wheel Diameter	12.5″
Battery & Motor
Operation Voltage	DC24V
Battery Type	Lithium Ion 24V 16Ah
Motor Type	Brushless 300W × 2
Controls & Safety
Controller	All Directional Joystick with LED screen
Brake System	Automatic Electromagnetic
Charger Type	AC 110-220V / 50Hz
Overload Protection	Yes

---

Warranty Information

---

Forcemech ARK All-Terrain Heavy Duty Folding Power Wheelchair comes with a warranty listed below:

• Main Frame: 5 Years

• Motors: 2 Years

• Controller Unit: 1 Year

• Batteries: 1 Year

• Joystick Controller: 1 Year

---
