Description

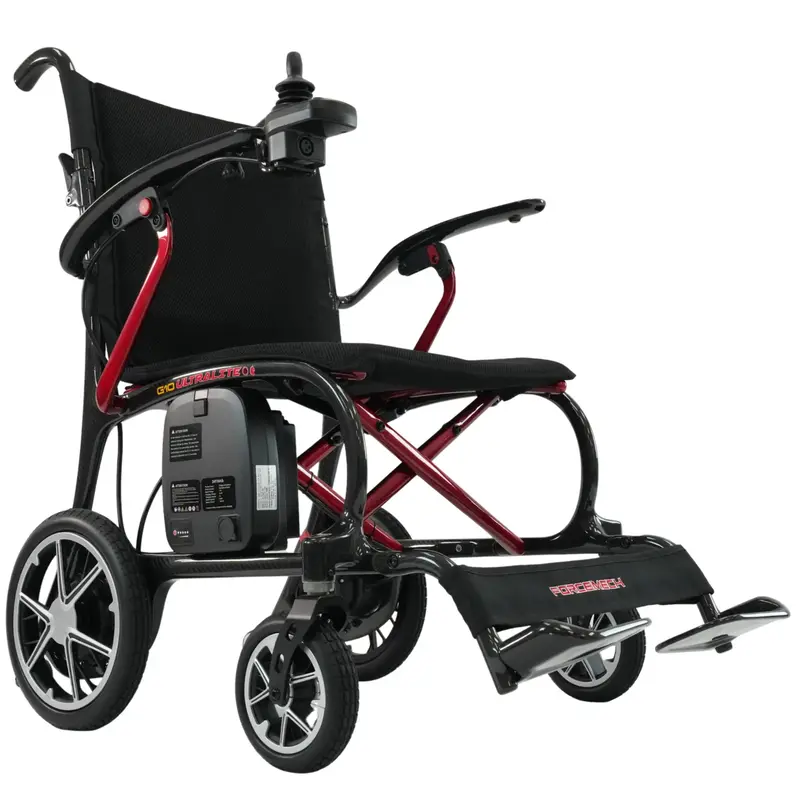

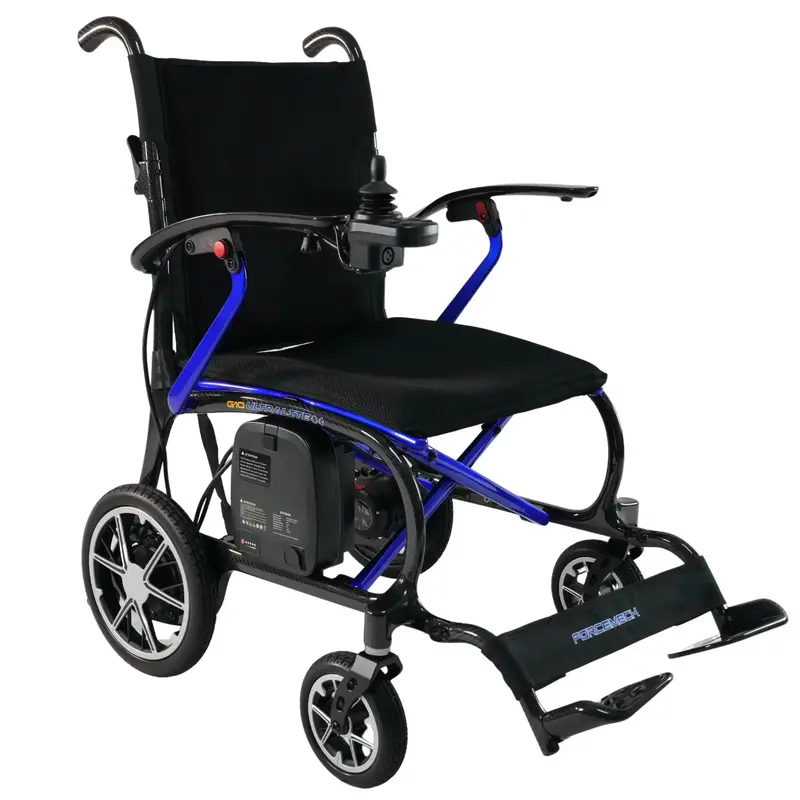

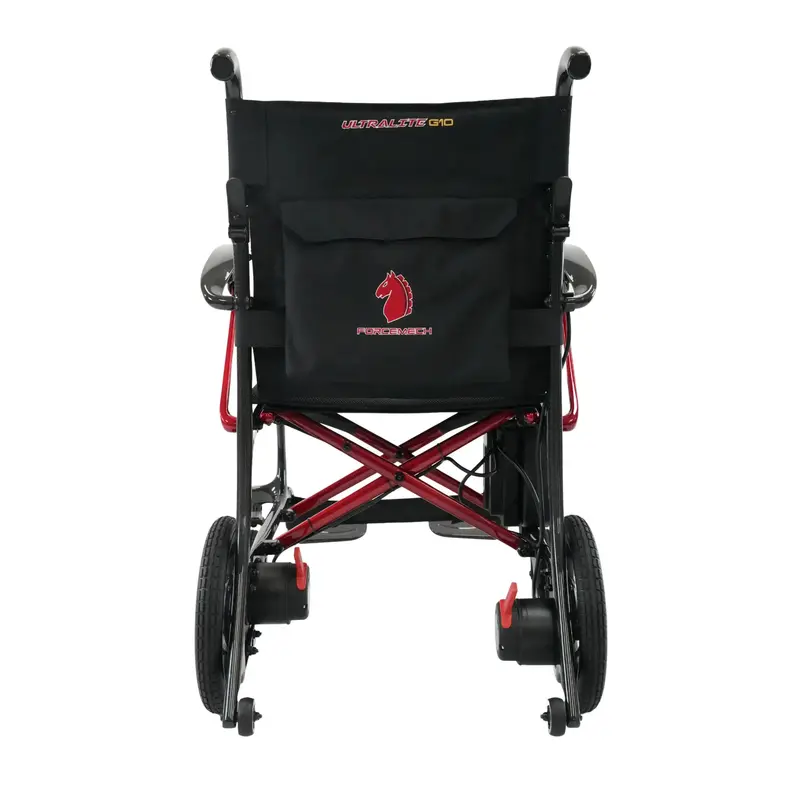

Forcemech Ultralite G10 — Only 26lbs, Airline-Approved, Ready for Every Journey
The Forcemech Ultralite G10 is a 26 lb carbon fiber folding power wheelchair built around one clear idea: a power chair shouldn’t feel heavy the moment you stop using it.
By stripping away unnecessary weight and using carbon fiber instead of bulkier materials, the G10 changes what owning a power wheelchair feels like day to day, easier to lift, easier to move, and far easier to live with when it’s not in use.
Weight That Actually Makes a Difference
This is the part you notice right away. The Ultralite G10 is light enough that handling it doesn’t feel like a chore. If you take the battery out, the chair weighs 25.8 lbs. With the battery in, it’s 27 lbs. That gives you a little more control over how much you’re lifting or moving at any given moment.
Seating and Driving Feel
The Ultralite G10 pairs an 18-inch wide seat, suited for most users up to 300 lbs, with a driving setup that feels steady and easy to control. Dual motors move the chair at a steady pace and make it easy to control direction and speed, without sudden starts or sharp turns.
With a range of up to 10 miles and a carbon fiber frame it’s designed to handle everyday movement without feeling limited or overbuilt.
Travel and Airline Use
The Ultralite G10 is designed to be travel-ready. It folds down quickly, the foldable footrest tucks away as part of the folding process, fits more easily into car trunks and storage spaces, and uses a removable lithium battery that meets airline battery requirements.
Battery Setup
The Ultralite G10 uses a removable 24V 10Ah lithium battery that can be charged separately, with an optional second battery available to extend range without changing how the chair is used day to day.
Lightweight Heavy Lifter
Weighing in at just 25 pounds, the G10 truly lives up to its “Ultralite” name. But don’t be misled by its lightweight design this powerhouse is built to accommodate riders of all ages and body types. With a robust 300-pound weight capacity and a spacious 18×17-inch seat size, it’s designed for comfort and strength without compromise.
Made for Travel
The Ultralite G10’s full carbon fiber design makes it travel-ready. The specs are FAA approved. Whether you’re flying, cruising, or loading it into your car trunk, it’s built to go wherever you need, ensuring effortless mobility on any journey.
Superb Battery Performance
The Forcemax™ Lithium Battery Technology, along with the option to attach a secondary battery, maximizes travel longevity allowing you to go all day without recharging. With this powerful setup, your adventures can continue uninterrupted, giving you the freedom to stay mobile for longer periods wherever you go.
.features-section { padding: 50px 20px; background: #fff;}.features-container { display: grid; grid-template-columns: repeat(auto-fit, minmax(280px, 1fr)); gap: 25px; max-width: 1100px; margin: auto;}.feature-card { background: #fff; border-radius: 12px; padding: 25px; text-align: center; box-shadow: 0 4px 12px rgba(0,0,0,0.08); transition: transform 0.2s ease, box-shadow 0.2s ease;}.feature-card:hover { transform: translateY(-5px); box-shadow: 0 8px 20px rgba(0,0,0,0.12);}.feature-icon { margin-bottom: 15px;}.feature-card h3 { font-size: 1.2rem; margin-bottom: 10px; color: #111;}.feature-card p { color: #555; line-height: 1.6;}
Key Features
-
-
26 lb carbon fiber folding power wheelchair
-
18″ seat width
-
Supports up to 300 lbs
-
Foldable footrest
-
Dual-motor drive
-
Removable lithium battery
-
Folds for storage and transport
-
Airline-compatible battery system
-
Documents
Forcemech Ultralite G10 User Instruction ManualForcemech Ultralite G10 Brochure
Specification
table { width: 100%; border-collapse: collapse; margin: 20px 0; } th, td { border: 1px solid #333; padding: 10px; text-align: left; vertical-align: middle; } th[colspan=”2″] { background: #f2f2f2; } th { background: #fafafa; }
| Capacity & Weight | |
|---|---|
| Weight Capacity | 300 lbs |
| Total Weight (With Battery) | 27 lbs |
| Total Weight (Without Battery) | 25 lbs |
| Battery Weight | 2 lbs |
| Performance | |
| Driving Distance | 10 miles |
| Maximum Speed Forward | 4 mph |
| Turning Radius | 28″ |
| Ground Clearance | 1.25″ |
| Static Stability | 9° |
| Dynamic Stability Uphill | 5° |
| Climbing Ability | 3° |
| Maximum Climbing Degree | 10° |
| Maximum Obstacle Height | ±1″ |
| Minimum Braking Distance (From Max Speed) | 39″ |
| Seat Plane Angle | 4° |
| Dimensions | |
| Overall Dimensions | 36″L x 24″W x 35″H |
| Folded Dimensions | 29″L x 12″W x 28″H |
| Pivot Width | 44″ |
| Reversing Width | 59″ |
| Required Width of Angled Corridor | 39″ |
| Required Doorway Entry Depth | 62″ |
| Required Corridor Width for Side Opening | 35″ |
| Linear Tolerance | ±2″ |
| Angular Tolerance | ±20° |
| Seating | |
| Effective Seat Depth | 16.5″ |
| Seat Width | 18″ |
| Effective Seat Width from Armrest | 20″ |
| Seat Surface Height (Front Edge) | 17.3″ |
| Backrest Angle | 30° |
| Backrest Height | 17.5″ |
| Back Support Height | 16.4″ |
| Distance from Footrest to Seat | 15.3″ |
| Distance from Footrest to Surface | 3″ |
| Armrests & Footrests | |
| Armrest Height | 9.5″ |
| Front Location of Armrest Structure | 14″ |
| Armrest Length | 15″ |
| Armrest Width | 2″ |
| Armrest Angle | 2.5° |
| Footrest Length | 4.5″ |
| Footrest to Leg Angle | 97° |
| Leg to Seat Surface Angle | 114° |
| Battery & Motor | |
| Battery Type | Lithium 24V 10Ah |
| Motor Model | ZW9012L3A-S 24V / 150W x2 |
| Maximum Output Current of Controller | 35A |
| Maximum Output Current of Charger | 2A |
| Diameter of Movable Wheels (Caster) | 6.5″ |
| Diameter of Fixed Wheels (Rear) | 11″ |
| Controls | |
| Force to Operate Push-button | 2N |
Warranty Information
Forcemech provides a limited warranty on the Ultralite G10 and its parts against defects. Contact us if you notice any issues with your power chair.
- Main Frame – 5 years
- Motors, Controller Box (CPU), Batteries, Joystick Controller – 1 year
