Handicare Ap-Series Portable Ceiling Patient Lift Systems

Description

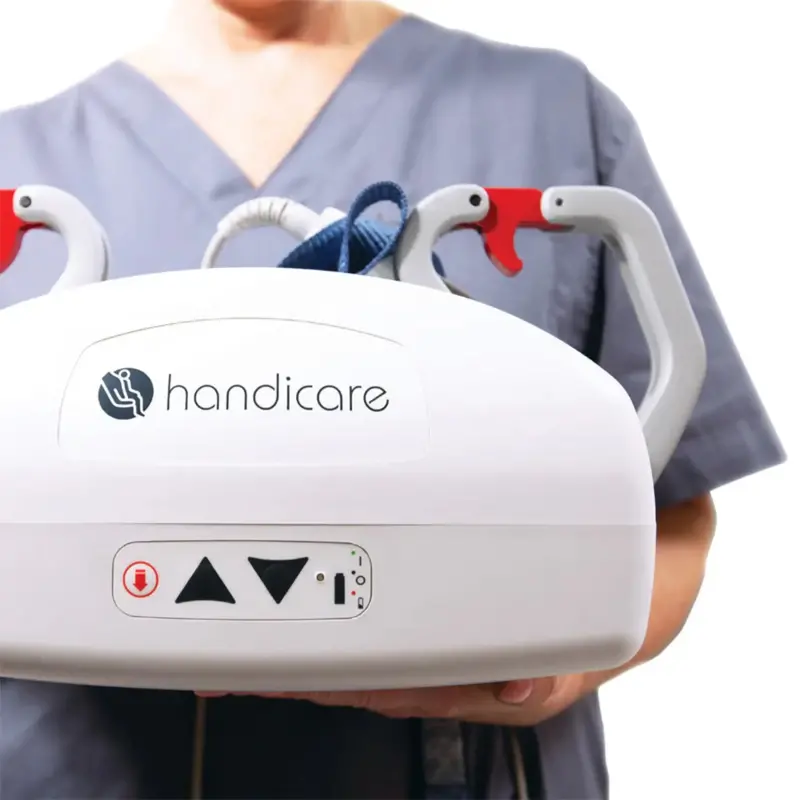

Easy Mobility with the AP Series Portable Ceiling Lift

The AP Series Portable Ceiling Lift makes transferring from one place to another easy and stress-free, with capacity options of up 450 lbs. This lift helps you move smoothly and safely, whether you’re going from a bed to a wheelchair or another seat. Its compact design fits various spaces, making it versatile for different rooms in your home.

Easy and Safe Transfers

Say goodbye to the struggles of transferring safely with the AP Series Portable Ceiling Lift. It solves the problem of difficult and potentially risky transfers by providing a reliable, easy-to-use solution.

The lift features a smooth, quiet operation and can be easily maneuvered and stored when not in use. With its adjustable capacity options, you can ensure that the lift meets your specific needs.

---

Features and Benefits

---

• Smooth Operation: Designed for quiet and smooth lifting, minimizing disruptions and providing a gentle transfer experience.

• Compact and Portable: Lightweight and easy to move, this lift can be used in different rooms and stored conveniently when not in use.

• Easy Maneuverability: Simple to operate, making it easy to position and guide the lift for accurate and secure transfers.

• Versatile Design: Suitable for various transfer needs, from moving between a bed and wheelchair to other seating arrangements, fitting into different spaces.

• Durable Construction: Built with high-quality materials to ensure long-lasting performance and reliability for daily use.

---

Documents

---

Handicare AP-Series Multi Model Manual

AP-Series Portable Ceiling Lifts Brochure

---

Specifications

---

table { width: 100%; border-collapse: collapse; } th, td { border: 1px solid #ddd; padding: 8px; text-align: left; } th { background-color: #f2f2f2; }

Specification	Details
Lift Motor	24 VDC
Safe Working Load (SWL)	204 kg (450 lb)
Dimensions (L x W x H)	365 x 209 x 190 mm (14 x 8.2 x 7.5 in)
Unit Weight	5.5 kg (12.2 lb)
AP-450: Lift Capacity	Up to 204 kg (450 lb)
Model	303060: Portable Ceiling Lift
Hand Control	Digital
IP Rating	IPx6 and IPx7
Service Life	10 Years or 22,500 Cycles
Rated Performance	80 lifts at Max Load
Maximum Sound Level	50 dB
Batteries	Single 24V 4.0AH (20 cell 1.2V) NiMH battery
Charger Model	PS2403SRM26
Charger Input	100-240 VAC 0.5 Amps, 50-60 Hz
Charge Output	24 VDC, 1.33 Amps
Lifting Range	Up to 1960 mm (77 in)
Duty Cycle	1 Min “On” / 9 Mins “Off”

---

Warranty Information

---

• Handicare guarantees all equipment, which includes Ceiling Lifts, Floor Lifts, Bathroom Safety, Slings, Service Parts, and Track and accessories, supplied as new, against failure within 1 year from the date of installation or 18 months from the date of purchase.
