Poweo 140 Quick-Up Electric Patient Lift – Compact & Lightweight

Description

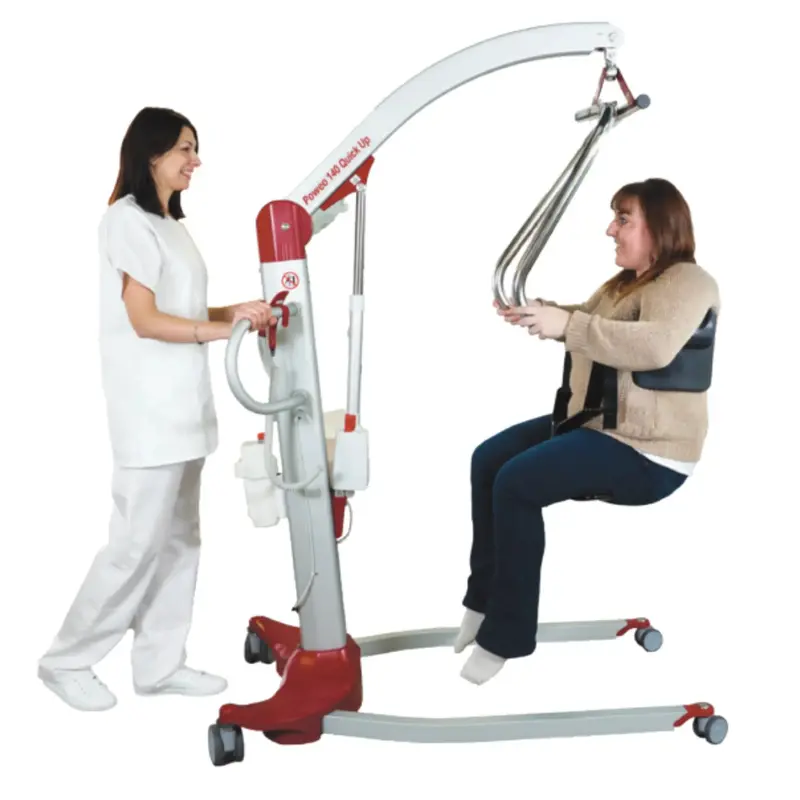

Quick-Up Electric Patient Lift – Fast, Safe Transfers for Independent Daily Mobility

The POWEO 140 Quick-Up is designed to make daily transfers safer and more efficient for patients and caregivers alike. With a maximum lifting capacity of 309 lbs, this lightweight aluminum lift provides reliable support for a wide range of patients. Its Quick-Up suspension allows for smooth movement from wheelchairs to beds, toilets, comfort chairs, or bathtubs without the need for slings.

The high-capacity removable battery ensures consistent operation, while the electric base opening, ergonomic thigh support, and rear wheels with brakes make positioning and maneuvering easy. Double controls, including an intuitive wired remote and fixed column control, give patients and caregivers full control over transfers. Emergency stop and mechanical/electrical lowering systems further enhance safety during every lift.

How It Enhances Daily Life for Patients

For patients, the POWEO® 140 Quick-Up Patient Lift significantly improves independence and confidence. Transfers that were once physically demanding or stressful are now smooth and secure, reducing the risk of discomfort or injury. The ergonomic thigh support and controlled lifting motion provide a safe, supportive experience, allowing patients to participate more fully in daily routines. By minimizing reliance on manual assistance, patients experience greater freedom, comfort, and dignity throughout their day.

For Passive Transfer

A passive transfer is when the patient does not help with the movement. Instead, a caregiver or a lift does all the work. This is used for patients who cannot move on their own or safely support their weight.

---

Main Features

---

---

Key Features

---

• Quick-Up Suspension – Transfers patients within seconds without using slings.

• Ergonomic Thigh Support – One-size design adapts comfortably to all body types.

• Maximum Lifting Capacity: 309 lbs

• Electric Base Opening – Perfect positioning in front of wheelchairs, beds, toilets, and comfort chairs.

• Lightweight Aluminum Structure – Easy to maneuver and transport.

• High-Capacity Removable Battery – Fast 2.5-hour recharge for continuous use.

• Dual Control System – Column-mounted control and wired remote with battery and maintenance indicators.

• Rear Wheels with Brakes – Ensures stability during transfers.

• Emergency Stop & Lowering – Electrical and mechanical systems safeguard patient and caregiver.

• PC-Service Connection – Compatible with Poweo® Service Tool for maintenance and diagnostics.

• Perfect for passive transfers – providing a safe and reliable way to move patients who cannot assist in their own mobility
• Made in France

---

Safety Features

---

• Emergency Stop Button for immediate control

• Dual Emergency Lowering Systems – electrical & mechanical

• Overload Protection – system shuts down if lifting capacity is exceeded

• Low Battery & Maintenance Indicators for proactive safety

• Rear Wheels with Brakes for stability during transfers

• PC-Connection Cable compatible with Poweo® Service Tool for diagnostics

---

What’s in the Box?

---

• Base with electrical opening of the legs

• Equipped column

• Arm

• “Quick Up” suspension

• Electrical lifting actuator with mechanical emergency lowering function

• Removable battery with emergency shutdown button

• Remote control

• User manual

• Battery charger

• Special wrenches, screws, and bolts for assembly (not pictured)

---

Compatible Accessories

---

• Removable High-Capacity Battery

• Poweo® Service Tool PC Connection Cable

---

Ideal For

---

• Hospitals & Nursing Homes – for fast and efficient patient transfers

• Home Care Settings – simplifies everyday movement without slings

• Patients with Limited Mobility – who require quick, comfortable seated transfers

• Caregivers – seeking a safe, ergonomic solution to reduce strain during lifting tasks

---

Documents

---

POWEO 140 Quick- Up User Manual
POWEO 140 Quick- Up Product Brochure table { width: 100%; border-collapse: collapse; margin: 20px 0; } th, td { border: 1px solid #000; padding: 8px 12px; text-align: left; } th { background-color: #f2f2f2; }

---

Product Specifications

---

Capacity & Weight
Lifting Capacity	309 lbs
Total Weight	101 lbs
Dimensions
Length (Closed Base)	53.9″
Minimum Height	57.1″
Maximum Height	84.3″
Height Under Suspension	54.3″
Height of the Feet	4.33″
Ground Clearance	1.97″
Closed Base Width	26.8″
Open Base Width	46.5″
Wheels
Front Wheels	2.95″
Rear Wheels (with brakes)	3.94″
Battery & Electrical
Battery	NiMH 24 V – 3 Ah
Battery Capacity	>90 cycles
Lifting Actuator	Linak® 24 VDC
Construction
Materials	Aluminium & Steel

---

Warranty Information

---

• The POWEO 140 Quick- Up Lightweight Electric Patient Lift have a four (4) years warranty, except for the battery that is guaranteed one (1) year.

---
